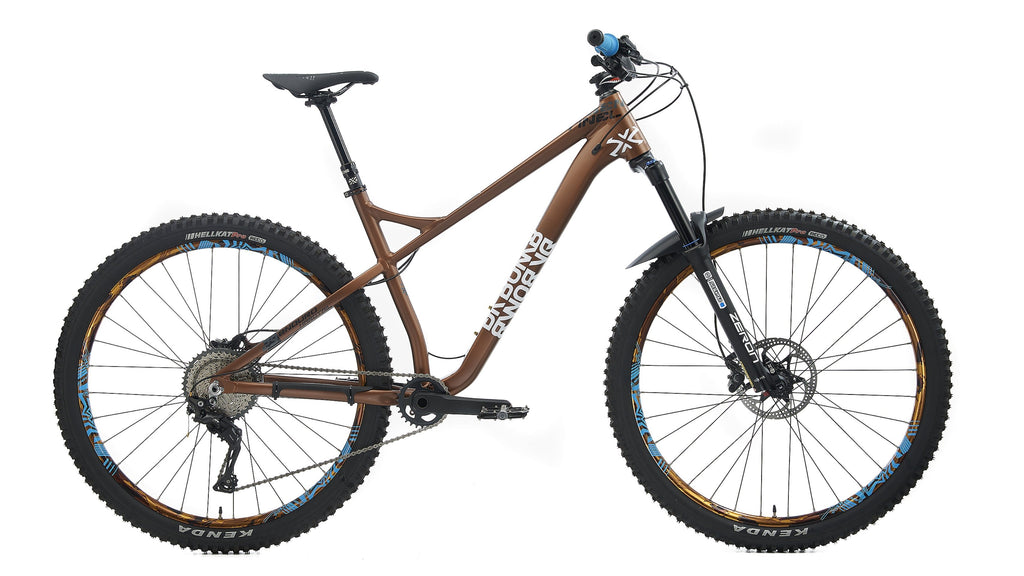

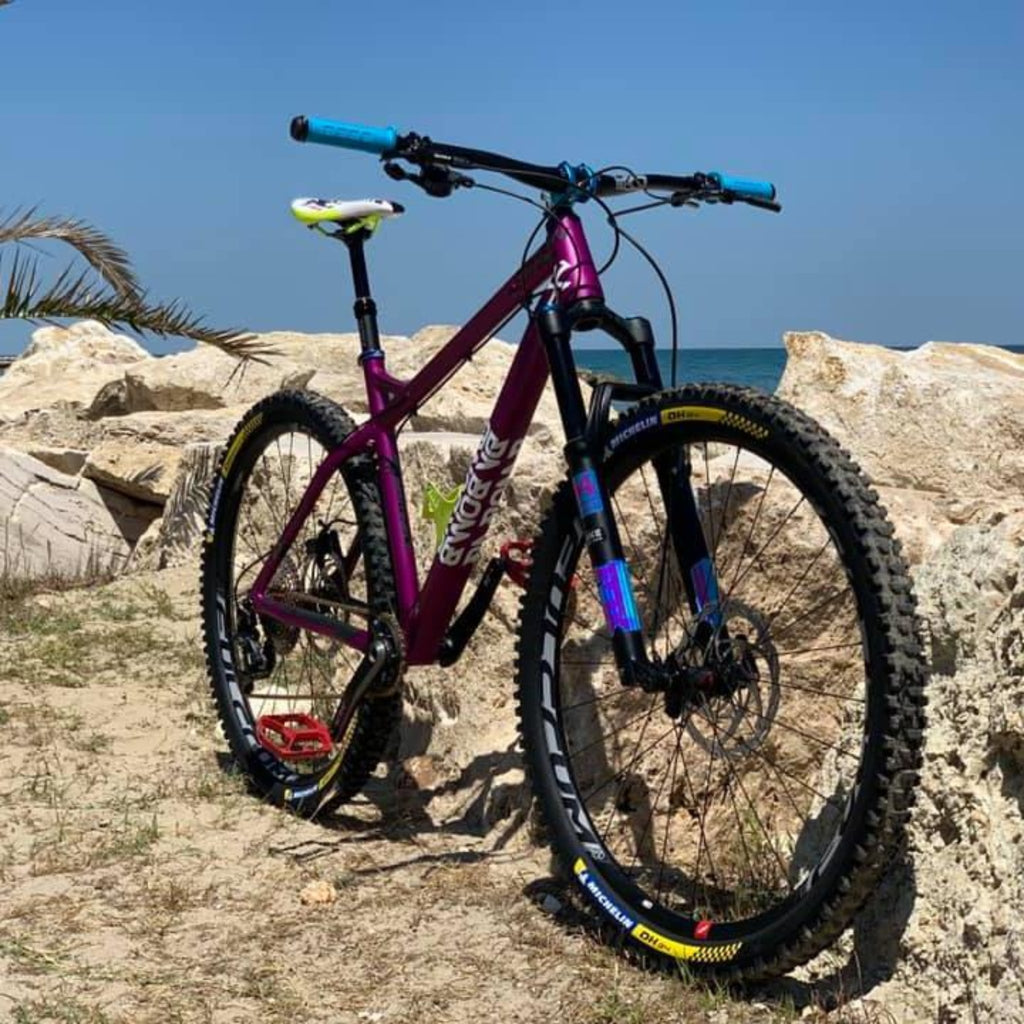

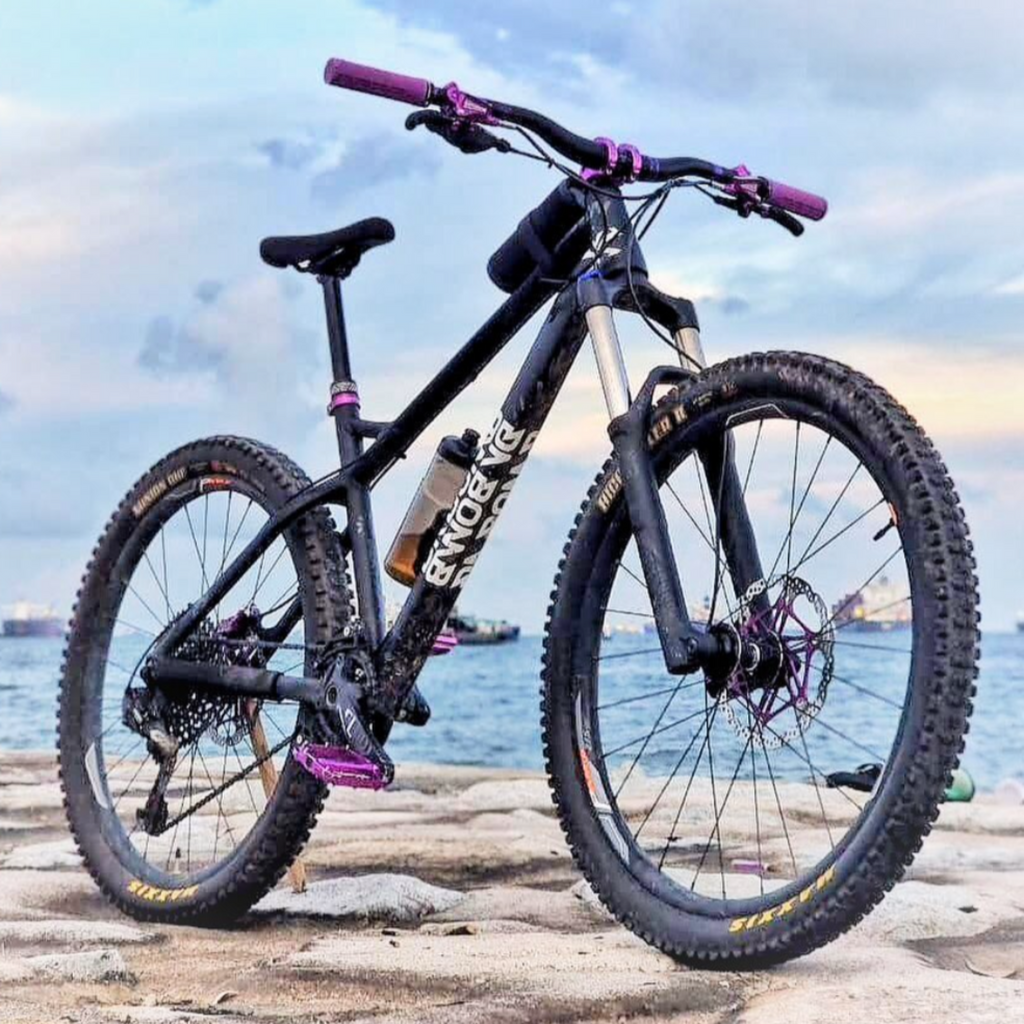

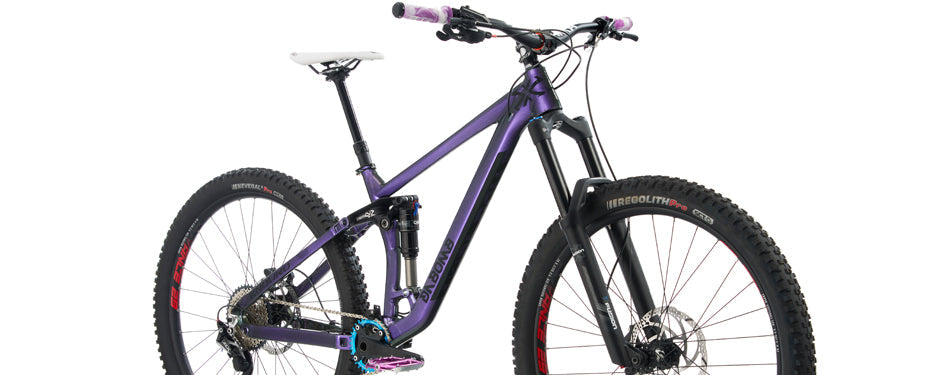

Introducing the new SENTINEL!



It's your trusty companion for exploring various terrains. Crafted from square hydro-formed aluminum tubing, it's high-strength yet lightweight.

The curved down tube and seat tube not only provide extra impact resistance but also make a visual impact.

With a short chainstay, low bottom bracket (BB), and slack head tube angle, SENTINEL is designed for endurance and agility. It's always ready to go the distance.



• Material: Aluminum
• Size: 15” / 17” / 19”
• Tapered head tube: ZS44/ZS56
• Seat Post: 30.9mm
• BB Width: 73mm W/ISCG05 mount
• Rear Dropout: 148mm*12mm*P1.75
• Included: Rear Axle / Clamp / Hanger
• Inner Cable Routing System
• Post-mount disc brake system
• Weight: 2340g (19”)
• Max. size of Tire: 29"*2.6"

• Color Available: Matte Black / Matte Purple / Gloss Chameleon / Matte Bronze Orange / Gloss Candy Red

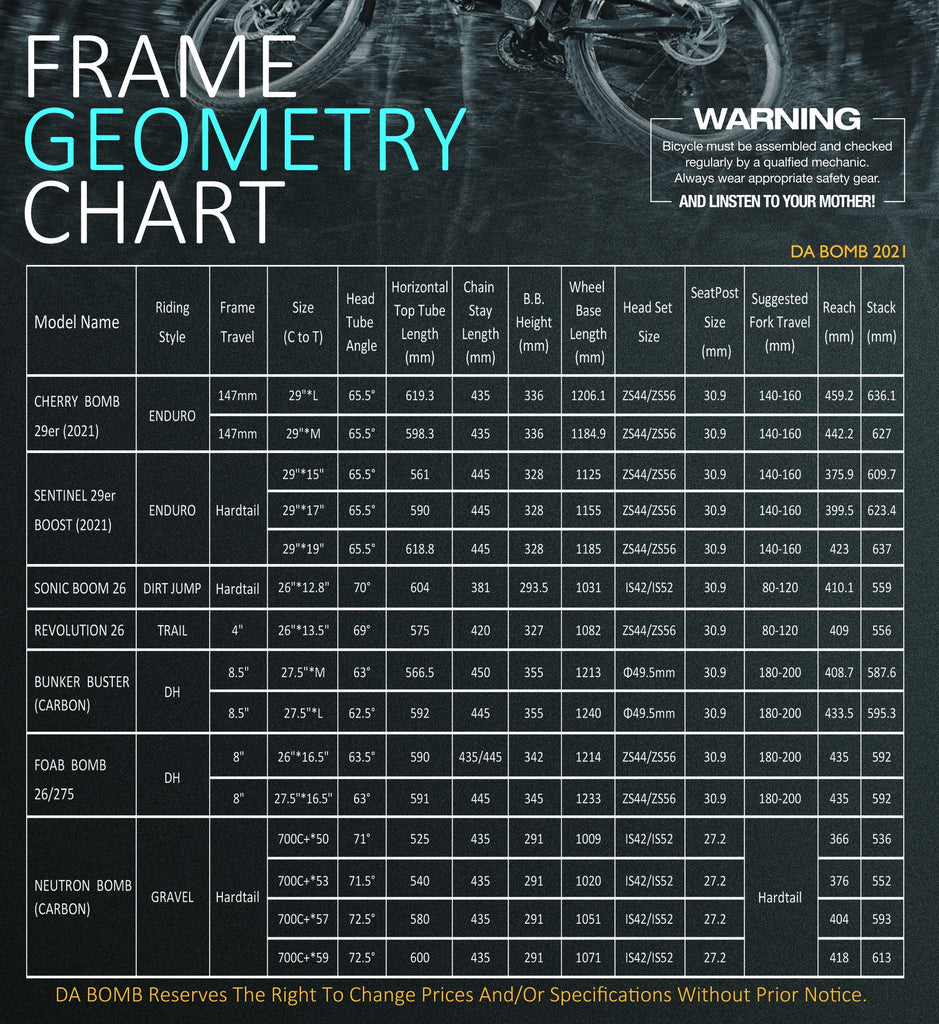

GEOMETRY



• Size: 29X15"
• Head Tube Angle: 65.5゜
• Horizontal Top Tube
• Length: 15"-561mm
• Chain Stay Length: 445mm
• B.B. Height: 328mm
• Wheel Base Length: 15"-1125mm
• Head Set Size: ZS44/ZS56
• Seat Post:Size: 30.9mm
• Suggested Fork Travel: 140-160mm
• Reach : 15"-375.9mm
• Stack : 15"-609.7mm



• Size : 29x17"
• Head Tube Angle: 65.5゜
• Horizontal Top Tube
• Length: 17"-590mm
• Chain Stay Length: 445mm
• B.B. Height: 328mm
• Wheel Base Length: 17"-1155mm
• Head Set Size: ZS44/ZS56
• Seat Post:Size: 30.9mm
• Suggested Fork Travel: 140-160mm
• Reach : 17"-399.5mm
• Stack : 17"-623.4mm



• Size: 29x19"
• Head Tube Angle: 65.5゜
• Horizontal Top Tube
• Length: 19"-618.8mm
• Chain Stay Length: 445mm
• B.B. Height: 328mm
• Wheel Base Length: 19"-1185mm
• Head Set Size: ZS44/ZS56
• Seat Post:Size: 30.9mm
• Suggested Fork Travel: 140-160mm
• Reach : 19"-423mm
• Stack : 19"-637mm
